FEATURES
APPLICATIONS
SUPPLIED WITH
TECHNICAL DATA | ||
Frequency Range of Meter | 400 MHz – 7.2 GHz (will detect signals from 200 MHz to 8 GHz) | |
Accuracy | +/- 6dB - 3rd Party Certified | |
Sampling Rate | <5 μs | |

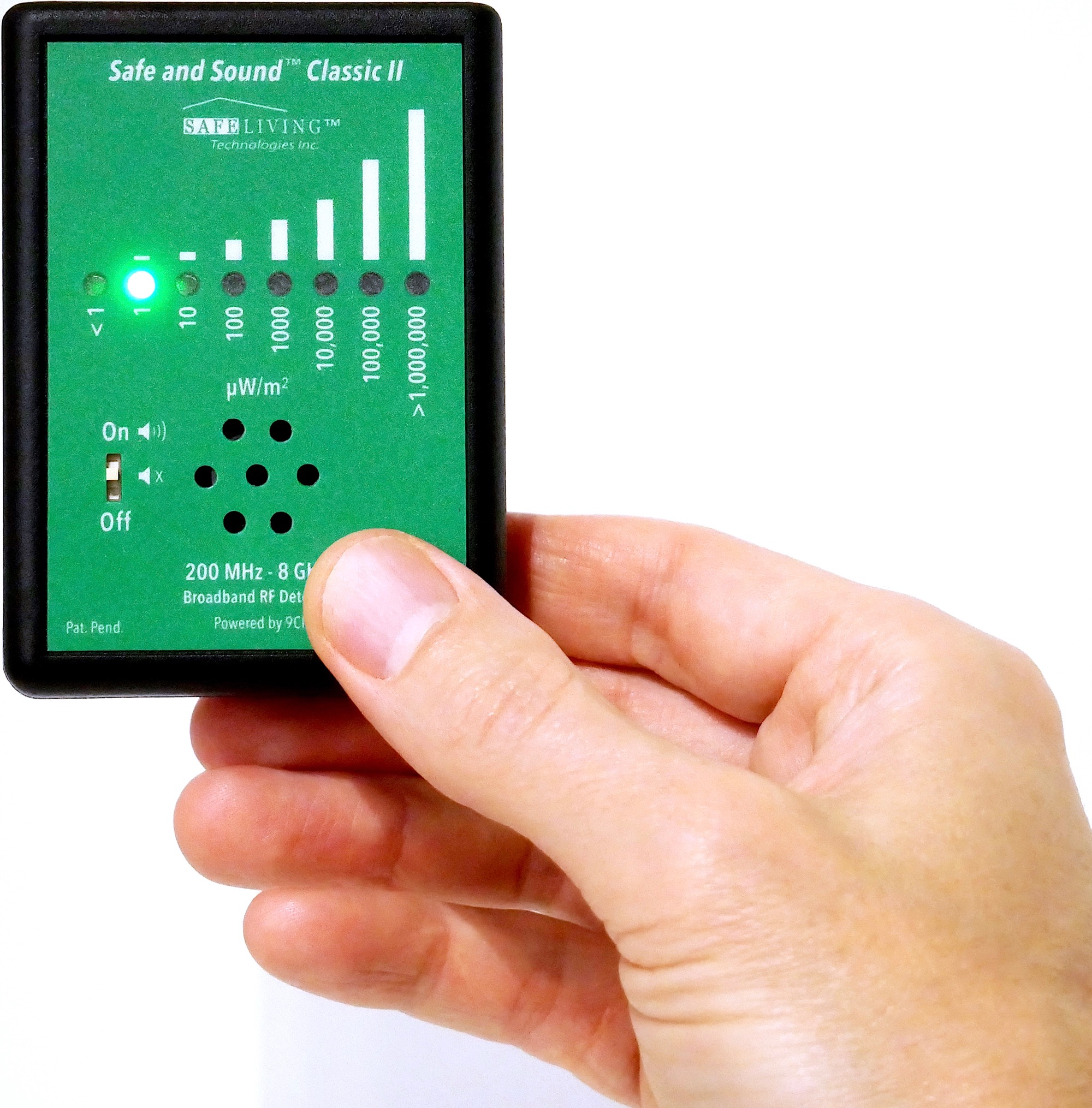

LED Ranges @ 2.4 GHz
|
Green blink |
<1 µW/m2 |
Green | 1–10 µW/m2 | |
Yellow | 10–100 µW/m2 | |
Orange | 100–1000 µW/m2 | |
Red | 1000–10 000 µW/m2 | |
Red blink | >10 000 µW/m2 | |
Zipper Case Dimensions | 3.5" x 4.3" x 1.2" (85 x 110 x 30 mm) | |
Meter Dimensions | 2.5" x 3.5" x 0.8" (65 x 90 x 21 mm) | |
Weight Zipper Case | Approx. 140 grams including batteries and zippered carrying case | |
Material of Case | Plastic | |
Battery Life | 2 x AAA Alkaline Batteries - 12 to 20 hour battery life |
